Glass
Sunroof Film

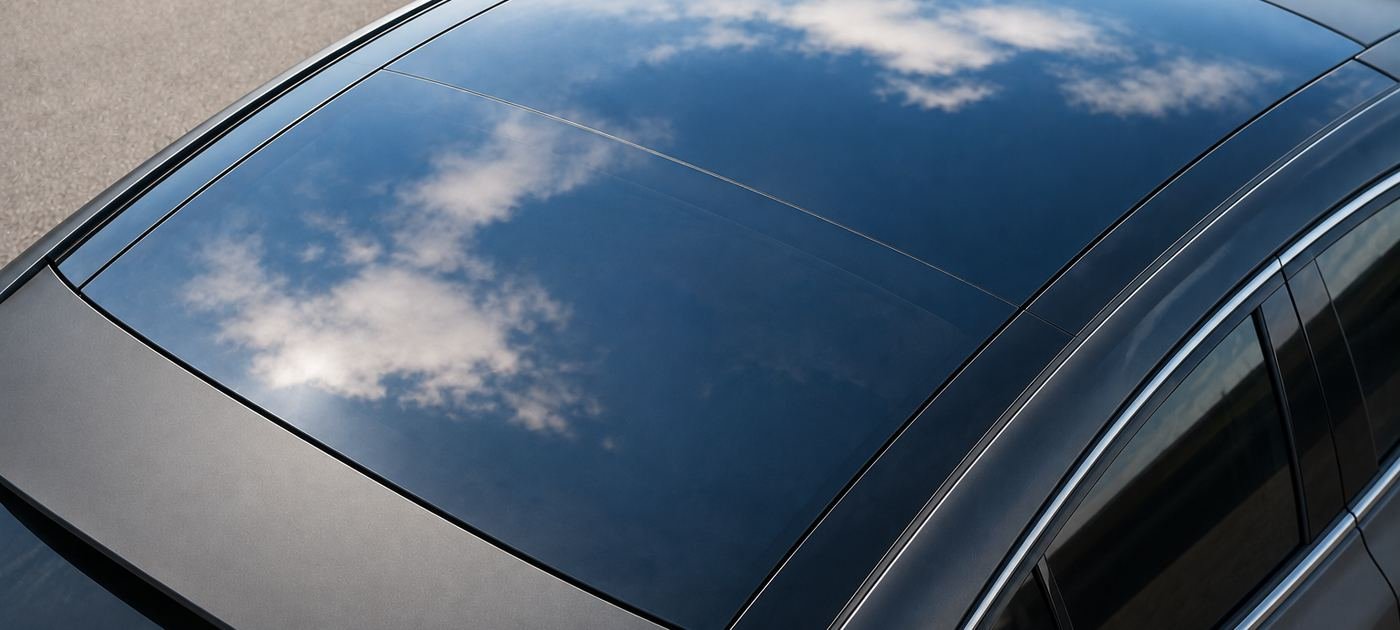

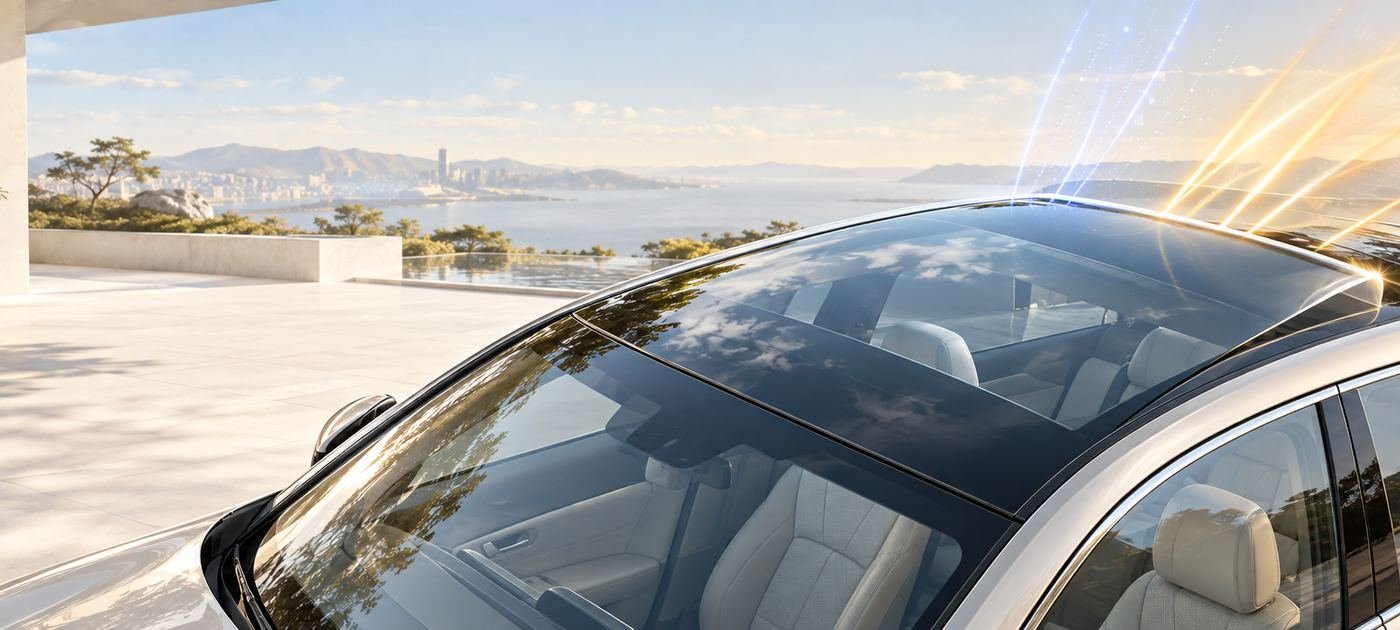

Cooler under glass. Cuts solar heat through a panoramic roof and blocks UV, without turning the cabin dark.
SURFACE · SUNROOF FILM
Sunroof Film
Sunroof Film
Cuts heat and blocks UV overhead, without dimming the view.
| Item | Specification | Test method |
|---|---|---|
| Gloss (60°) | ≥ 92% | GB 8807 |
| Finished weight | 405–425 g/m² | GB/T 4669 |
| Glue weight | 25–30 g/m² | GB/T 4669 |
| Product thickness | 210 ± 15 µm Per tier TBC | GB/T 7125 |
| Base film thickness | 180 ± 5 µm Per tier TBC | GB/T 7125 |
| Tensile strength | ≥ 380 kg/cm² | GB/T 10041 |
| Peel strength | ≥ 75 N/cm | GB/T 10041 |
| Elongation at break | ≥ 350% | GB/T 1040.1 |
| Shrinkage (MD) | ≤ 0.5 mm | FTM 14 |
| Shrinkage (TD) | ≤ 0.4 mm | FTM 14 |
| Release force | ≤ 0.35 N/25 mm | GB/T 2792 |
| Tack | ≥ 9 N/25 mm | FTM 9 |
| 24 h, 180° peel | ≥ 18 N/25 mm | GB/T 2792 |
| Maximum temperature | 120 °C ± 5 min | GB/T 2423.1 |
| Self-healing | Heat 75 °C, 0.1 mm | Brush & heat |
| Water contact angle | ≥ 103° | DL/T 864 |
| Anti-acid | Oxalate 72 h — pass | Lab test |
| Yellowness index | ≤ 2 | QUV |
| Anti-fouling | Strong marker — pass | Lab test |
Figures are for the PCF-180 platform. Per-tier values are published as each technical data sheet is released.
Protection
What it stops
Stone chips
Road debris at speed, absorbed by the film instead of transmitted to the paint.
Swirl marks and light abrasion
Wash marks displace the elastic top coat rather than removing it.
UV fade
Ultraviolet reaches the film, not the clear coat underneath it.
Bird droppings and tree sap
Acidic deposits sit on a resistant surface and lift off in a wash.
Road salt and chemicals
Unchanged after 72 hours of oxalate exposure under lab test.
Insect etching
The residue that etches a bonnet over a summer never reaches it.
Care
Looking after it
Wait seven days after installation before washing. Hand wash with a pH-neutral shampoo and a clean microfibre. Avoid high-pressure jets at the film edges. Do not use abrasive polishes, solvent-based degreasers or dyed waxes. Light scratches will disappear with warm water or sunlight; deeper marks can be heat-treated by your installer.
Unopened rolls keep for one year, stored upright at +15 °C to +25 °C and around 50% relative humidity.
Warranty
Registered on installation
The warranty term for glass products is being finalised. Every installation is still registered against the roll it came from and carries a certificate.
Fit Sunroof Film
Goldman is fitted by trained installers. Tell us where you are and we will point you at the nearest one.
